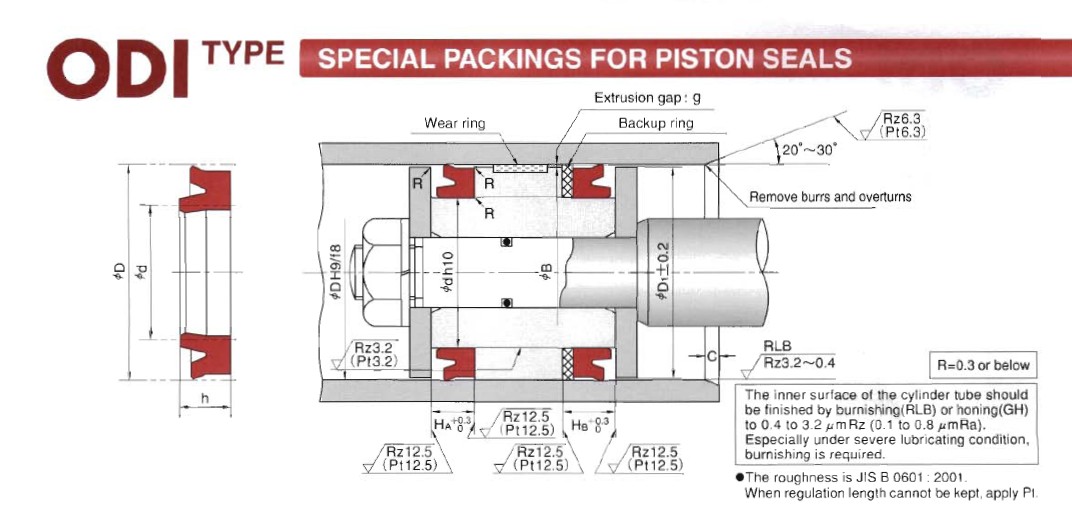

ODI型孔用密封
ODI型孔用密封主要材料是邵爾94度聚氨酯，壓力可達(dá)到70MPA，溫度：-35度---+100度，有極好的耐磨性和密封能力。他有較大的截面，可用于大的壓力范圍。
| 密封件公稱尺寸 | 溝槽部分尺寸 | 訂貨號(hào) | |||||
| D | d | h | HA | HB | φD1 | C | |
| 18 | 8 | 7.5 | 8.5 | 10.5 | 17 | 2.5 | FU2150-HO |
| 19.2 | 11.2 | 5 | 5.7 | 7.7 | 18.2 | FU0202-HO | |
| 20 | 10 | 6 | 7 | 9 | 19 | FU0205-HO | |
| 10 | 7.5 | 8.5 | 10.5 | 19 | FU0206-HO | ||
| 10 | 8 | 9 | 11 | 19 | FU0207-HO | ||
| 12 | 5 | 5.7 | 7.7 | 19 | FU0208-HO | ||
| 22 | 14 | 5 | 5.7 | 7.7 | 21 | FU0242-HO | |
| 24 | 14 | 7.5 | 8.5 | 10.5 | 23 | 3.5 | FU2151-HO |
| 25 | 15 | 6 | 7 | 9 | 24 | FU0273-HO | |
| 15 | 8 | 9 | 11 | 24 | FU0274-HO | ||
| 17 | 5 | 5.7 | 7.7 | 24 | FU0275-HO | ||
| 26 | 16 | 7.5 | 8.5 | 10.5 | 25 | FU2152-HO | |
| 18 | 5 | 5.7 | 7.7 | 25 | FU0310-HO | ||
| 28 | 15 | 10 | 11 | 13 | 27 | FU2153-HO | |
| 20 | 5 | 5.7 | 7.7 | 27 | 2 | FU2138-HO | |
| 30 | 20 | 5 | 5.7 | 7.7 | 29 | 3.5 | FU0351-HO |
| 20 | 6 | 7 | 9 | 29 | FU0352-HO | ||
| 20 | 8 | 9 | 11 | 29 | FU0353-HO | ||
| 22.4 | 5 | 5.7 | 7.7 | 29 | 2 | FU2139-HO | |
| 31 | 18 | 10 | 11 | 13 | 30 | 3.5 | FU2154-HO |
| 31.5 | 18.5 | 8 | 9 | 11 | 30.5 | FU0377-HO | |
| 18.5 | 10 | 11 | 13 | 30.5 | FU0378-HO | ||
| 21.5 | 6 | 7 | 9 | 30.5 | FU0379-HO | ||
| 21.5 | 8 | 9 | 11 | 30.5 | FU0380-HO | ||
| 23.5 | 5 | 5.7 | 7.7 | 30.5 | 2 | FU0381-HO | |
| 33 | 20 | 10 | 11 | 13 | 32 | 3.5 | FU2155-HO |
| 25 | 5 | 5.7 | 7.7 | 32 | 2 | FU2140-HO | |
| 35 | 22 | 10 | 11 | 13 | 34 | 3.5 | FU2156-HO |
| 25 | 6 | 7 | 9 | 34 | FU0418-HO | ||
| 25 | 8 | 9 | 11 | 34 | FU0419-HO | ||
| 35.4 | 22.4 | 10 | 11 | 13 | 34.4 | FU2157-HO | |
| 35.5 | 22.5 | 8 | 9 | 11 | 34.5 | FU0446-HO | |
| 22.5 | 10 | 11 | 13 | 34.5 | FU0447-HO | ||
| 25.5 | 6 | 7 | 9 | 34.5 | FU0448-HO | ||
| 25.5 | 8 | 9 | 11 | 34.5 | FU0449-HO | ||
| 38 | 25 | 10 | 11 | 13 | 37 | FU0466-HO | |
| 40 | 25 | 9 | 10 | 12 | 39 | FU0485-HO | |
| 25 | 10 | 11 | 13 | 39 | FU0486-HO | ||
| 27 | 8 | 9 | 12 | 39 | FU0488-HO | ||
| 27 | 10 | 11 | 14 | 39 | FU0489-HO | ||
| 30 | 8 | 9 | 12 | 39 | FU0491-HO | ||
| 41 | 28 | 10 | 11 | 14 | 40 | FU2158-HO | |
| 43 | 30 | 10 | 11 | 14 | 42 | FU2159-HO | |
| 44.5 | 31.5 | 10 | 11 | 14 | 43.5 | FU2160-HO | |
| 45 | 30 | 9 | 10 | 13 | 44 | FU0559-HO | |
| 30 | 10 | 11 | 14 | 44 | FU0560-HO | ||
| 32 | 8 | 9 | 12 | 44 | FU0561-HO | ||
| 32 | 10 | 11 | 14 | 44 | FU0562-HO | ||
| 35 | 8 | 9 | 12 | 44 | FU0564-HO | ||
| 50 | 34 | 10 | 11 | 14 | 49 | 4 | FU0608-HO |
| 34 | 12 | 13 | 16 | 49 | FU0609-HO | ||
| 35 | 9 | 10 | 13 | 49 | FU0610-HO | ||
| 35 | 10 | 11 | 14 | 49 | FU0611-HO | ||
| 35 | 12 | 13 | 16 | 49 | FU2161-HO | ||
| 40 | 8 | 9 | 12 | 49 | FU0614-HO | ||
| 51.5 | 35.5 | 12 | 13 | 16 | 50.5 | FU2162-HO | |
| 55 | 40 | 9 | 10 | 13 | 54 | FU0689-HO | |
| 40 | 10 | 11 | 14 | 54 | FU0690-HO | ||
| 45 | 8 | 9 | 12 | 54 | FU0693-HO | ||
| 56 | 40 | 10 | 11 | 14 | 55 | FU0716-HO | |
| 40 | 12 | 13 | 16 | 55 | FU0717-HO | ||
| 41 | 9 | 10 | 13 | 55 | FU0718-HO | ||
| 41 | 10 | 11 | 14 | 55 | FU0719-HO | ||
| 46 | 8 | 9 | 12 | 55 | FU0721-HO | ||
| 60 | 45 | 9 | 10 | 13 | 59 | FU0740-HO | |
| 45 | 10 | 11 | 14 | 59 | FU0741-HO | ||
| 50 | 8 | 9 | 12 | 59 | FU0743-HO | ||
| 61 | 45 | 12 | 13 | 16 | 60 | FU2163-HO | |
| 63 | 47 | 10 | 11 | 14 | 62 | FU0779-HO | |
| 47 | 12 | 13 | 16 | 62 | FU0780-HO | ||
| 48 | 9 | 10 | 13 | 62 | FU0781-HO | ||
| 48 | 10 | 11 | 14 | 62 | FU0782-HO | ||
| 53 | 8 | 9 | 12 | 62 | FU0785-HO | ||
| 65 | 50 | 9 | 10 | 13 | 64 | FU0804-HO | |
| 50 | 10 | 11 | 14 | 64 | FU0805-HO | ||
| 55 | 8 | 9 | 12 | 64 | FU0808-HO | ||
| 66 | 50 | 12 | 13 | 16 | 65 | FU2164-HO | |
| 69 | 53 | 12 | 13 | 16 | 68 | FU0836-HO | |
| 70 | 50 | 12 | 13 | 16 | 69 | 5 | FU0842-HO |
| 55 | 9 | 10 | 13 | 69 | FU0844-HO | ||
| 55 | 10 | 11 | 14 | 69 | FU0845-HO | ||
| 60 | 8 | 9 | 12 | 69 | FU0847-HO | ||
| 71 | 51 | 12 | 13 | 16 | 70 | FU0872-HO | |
| 55 | 10 | 11 | 14 | 70 | FU0873-HO | ||
| 55 | 12 | 13 | 16 | 70 | FU0874-HO | ||
| 56 | 9 | 10 | 13 | 70 | FU0875-HO | ||
| 56 | 10 | 11 | 14 | 70 | FU0876-HO | ||
| 61 | 8 | 9 | 12 | 70 | FU0878-HO | ||
| 75 | 55 | 12 | 13 | 16 | 74 | FU0894-HO | |
| 60 | 9 | 10 | 13 | 74 | FU0895-HO | ||
| 60 | 10 | 11 | 14 | 74 | FU0896-HO | ||
| 65 | 8 | 9 | 12 | 74 | FU0898-HO | ||
| 76 | 60 | 12 | 13 | 16 | 75 | FU2165-HO | |
| 80 | 60 | 12 | 13 | 16 | 79 | FU0929-HO | |
| 64 | 10 | 11 | 14 | 79 | FU0931-HO | ||
| 64 | 12 | 13 | 16 | 79 | FU0932-HO | ||
| 65 | 9 | 10 | 13 | 79 | FU0933-HO | ||
| 65 | 10 | 11 | 14 | 79 | FU0934-HO | ||
| 70 | 8 | 9 | 12 | 79 | FU0937-HO | ||
| 85 | 65 | 12 | 13 | 16 | 84 | FU0974-HO | |
| 70 | 9 | 10 | 13 | 84 | FU0977-HO | ||
| 70 | 10 | 11 | 14 | 84 | FU0978-HO | ||
| 75 | 8 | 9 | 12 | 84 | FU0980-HO | ||
| 90 | 70 | 12 | 13 | 16 | 89 | FU1014-HO | |
| 70 | 15 | 16 | 19 | 89 | FU1015-HO | ||
| 75 | 9 | 10 | 13 | 89 | FU1017-HO | ||
| 75 | 10 | 11 | 14 | 89 | FU1018-HO | ||
| 80 | 8 | 9 | 12 | 89 | FU1020-HO | ||
| 95 | 75 | 12 | 13 | 16 | 94 | FU1045-HO | |
| 75 | 15 | 16 | 19 | 94 | FU1046-HO | ||
| 80 | 9 | 10 | 13 | 94 | FU1047-HO | ||
| 80 | 10 | 11 | 14 | 94 | FU1048-HO | ||
| 100 | 80 | 12 | 13 | 16 | 98 | FU1072-HO | |
| 80 | 15 | 16 | 19 | 98 | FU1074-HO | ||
| 85 | 10 | 11 | 14 | 98 | FU1079-HO | ||
| 105 | 85 | 15 | 16 | 19 | 103 | FU2166-HO | |
| 110 | 90 | 12 | 13 | 16 | 108 | FU1149-HO | |
| 90 | 15 | 16 | 19 | 108 | FU1150-HO | ||
| 95 | 10 | 11 | 14 | 108 | FU1153-HO | ||
| 112 | 92 | 12 | 13 | 16 | 110 | FU1174-HO | |
| 92 | 15 | 16 | 19 | 110 | FU1175-HO | ||
| 97 | 9 | 10 | 13 | 110 | FU1176-HO | ||
| 97 | 10 | 11 | 14 | 110 | FU1177-HO | ||
| 115 | 95 | 15 | 16 | 19 | 113 | 5 | FU2167-HO |
| 120 | 100 | 12 | 13 | 16 | 118 | FU1210-HO | |
| 100 | 15 | 16 | 19 | 118 | FU1211-HO | ||
| 105 | 10 | 11 | 14 | 118 | FU1213-HO | ||
| 125 | 105 | 12 | 13 | 16 | 123 | FU1243-HO | |
| 105 | 15 | 16 | 19 | 123 | FU1244-HO | ||
| 105 | 16 | 17 | 20 | 123 | FU1245-HO | ||
| 110 | 9 | 10 | 13 | 123 | FU1247-HO | ||
| 110 | 10 | 11 | 14 | 123 | FU1248-HO | ||
| 130 | 110 | 12 | 13 | 16 | 128 | FU1274-HO | |
| 110 | 15 | 16 | 19 | 128 | FU1275-HO | ||
| 110 | 16 | 17 | 20 | 128 | FU1276-HO | ||
| 115 | 10 | 11 | 14 | 128 | FU1279-HO | ||
| 132 | 112 | 15 | 16 | 19 | 130 | FU2168-HO | |
| 140 | 120 | 12 | 13 | 16 | 138 | FU1316-HO | |
| 120 | 15 | 16 | 19 | 138 | FU1317-HO | ||
| 120 | 16 | 17 | 20 | 138 | FU1318-HO | ||
| 125 | 10 | 11 | 14 | 138 | FU1321-HO | ||
| 150 | 125 | 19 | 20 | 23 | 148 | 6.5 | FU2169-HO |
| 125 | 20 | 21 | 24 | 148 | FU1351-HO | ||
| 130 | 12 | 13 | 16 | 148 | FU1352-HO | ||
| 130 | 16 | 17 | 20 | 148 | FU1354-HO | ||
| 135 | 10 | 11 | 14 | 148 | FU1357-HO | ||
| 157 | 132 | 20 | 21 | 24 | 155 | FU1909-HO | |
| 160 | 135 | 19 | 20 | 23 | 158 | FU2170-HO | |
| 135 | 20 | 21 | 24 | 158 | FU1398-HO | ||
| 140 | 12 | 13 | 16 | 158 | FU1399-HO | ||
| 140 | 16 | 17 | 20 | 158 | FU1402-HO | ||
| 145 | 10 | 11 | 14 | 158 | FU1405-HO | ||
| 165 | 140 | 19 | 20 | 23 | 163 | FU1426-HO | |
| 140 | 20 | 21 | 24 | 163 | FU2186-HO | ||
| 170 | 145 | 19 | 20 | 23 | 168 | FU1436-HO | |
| 145 | 20 | 21 | 24 | 168 | FU1437-HO | ||
| 150 | 12 | 13 | 16 | 168 | FU1438-HO | ||
| 150 | 16 | 17 | 20 | 168 | FU1440-HO | ||
| 155 | 10 | 11 | 15 | 168 | FU1442-HO | ||
| 180 | 155 | 16 | 17 | 21 | 178 | FU1475-HO | |
| 155 | 19 | 20 | 24 | 178 | FU2171-HO | ||
| 155 | 20 | 21 | 25 | 178 | FU1476-HO | ||
| 160 | 12 | 13 | 17 | 178 | FU1478-HO | ||
| 160 | 16 | 17 | 21 | 178 | FU1479-HO | ||
| 165 | 10 | 11 | 15 | 178 | FU1482-HO | ||
| 185 | 160 | 19 | 20 | 24 | 183 | 6.5 | FU2172-HO |
| 160 | 20 | 21 | 25 | 183 | FU2187-HO | ||
| 190 | 165 | 16 | 17 | 21 | 188 | FU1507-HO | |
| 165 | 20 | 21 | 25 | 188 | FU1508-HO | ||
| 170 | 12 | 13 | 17 | 188 | FU1509-HO | ||
| 170 | 16 | 17 | 21 | 188 | FU1510-HO | ||
| 175 | 10 | 11 | 15 | 188 | FU1512-HO | ||
| 200 | 175 | 16 | 17 | 21 | 198 | FU1536-HO | |
| 175 | 19 | 20 | 24 | 198 | FU2173-HO | ||
| 175 | 20 | 21 | 25 | 198 | FU1538-HO | ||
| 180 | 16 | 17 | 21 | 198 | FU1540-HO | ||
| 205 | 180 | 19 | 20 | 24 | 203 | FU2174-HO | |
| 180 | 20 | 21 | 25 | 203 | FU2188-HO | ||
| 210 | 185 | 16 | 17 | 21 | 208 | FU1570-HO | |
| 185 | 20 | 21 | 25 | 208 | FU1571-HO | ||
| 190 | 16 | 17 | 21 | 208 | FU1573-HO | ||
| 215 | 190 | 16 | 17 | 21 | 213 | FU2260-HO | |
| 220 | 195 | 16 | 17 | 21 | 218 | FU1592-HO | |
| 195 | 20 | 21 | 25 | 218 | FU1593-HO | ||
| 200 | 16 | 17 | 21 | 218 | FU1595-HO | ||
| 224 | 199 | 16 | 17 | 21 | 222 | FU1604-HO | |
| 199 | 20 | 21 | 25 | 222 | FU1605-HO | ||
| 204 | 16 | 17 | 21 | 222 | FU1607-HO | ||
| 225 | 200 | 16 | 17 | 21 | 223 | FU1616-HO | |
| 200 | 19 | 20 | 24 | 223 | 6.5 | FU2175-HO | |
| 200 | 20 | 21 | 25 | 223 | FU1617-HO | ||
| 205 | 16 | 17 | 21 | 223 | FU1619-HO | ||
| 230 | 205 | 16 | 17 | 21 | 228 | FU1632-HO | |
| 205 | 19 | 20 | 24 | 228 | FU1633-HO | ||
| 205 | 20 | 21 | 25 | 228 | FU1634-HO | ||
| 210 | 16 | 17 | 21 | 228 | FU1636-HO | ||
| 240 | 215 | 16 | 17 | 21 | 238 | FU1652-HO | |
| 215 | 19 | 20 | 24 | 238 | FU1653-HO | ||
| 215 | 20 | 21 | 25 | 238 | FU1654-HO | ||
| 220 | 16 | 17 | 21 | 238 | FU1656-HO | ||
| 250 | 225 | 16 | 17 | 21 | 248 | FU1671-HO | |
| 225 | 19 | 20 | 24 | 248 | FU1672-HO | ||
| 225 | 20 | 21 | 25 | 248 | FU1673-HO | ||
| 230 | 16 | 17 | 21 | 248 | FU1676-HO | ||
| 260 | 235 | 16 | 17 | 21 | 258 | FU1698-HO | |
| 235 | 19 | 20 | 24 | 258 | FU1699-HO | ||
| 240 | 16 | 17 | 21 | 258 | FU1701-HO | ||
| 270 | 245 | 16 | 17 | 21 | 268 | FU1715-HO | |
| 245 | 19 | 20 | 24 | 268 | FU1716-HO | ||
| 250 | 16 | 17 | 21 | 268 | FU1718-HO | ||
| 275 | 250 | 19 | 20 | 24 | 273 | FU2176-HO | |
| 250 | 20 | 21 | 25 | 273 | 7.5 | FU2189-HO | |
| 280 | 250 | 19 | 20 | 24 | 278 | FU1729-HO | |
| 255 | 19 | 20 | 24 | 278 | FU1731-HO | ||
| 290 | 260 | 19 | 20 | 24 | 288 | FU1744-HO | |
| 265 | 19 | 20 | 24 | 288 | FU1746-HO | ||
| 297 | 265 | 24 | 25 | 29 | 295 | FU2177-HO | |
| 265 | 25 | 26 | 30 | 295 | FU2190-HO | ||
| 300 | 270 | 19 | 20 | 24 | 298 | FU1758-HO | |
| 270 | 24 | 25 | 29 | 298 | FU2178-HO | ||
| 270 | 25 | 26 | 30 | 298 | FU1759-HO | ||
| 275 | 19 | 20 | 24 | 298 | FU1761-HO | ||
| 312 | 280 | 24 | 25 | 29 | 310 | FU2193-HO | |
| 332 | 300 | 24 | 25 | 29 | 330 | FU2194-HO | |
